Tractel Dynafor MWX Crane Scale 2.5 TON MAX, Weeghaak voor gebruik met meetapparatuur

€ 1.499,00
Omschrijving



Tractel Dynafor MWX Crane Scale 2.5 TON MAX



Weeghaak voor gebruik met meetapparatuur



Enkele malen gebruik.:

De weeghaak uit de Dynascale-serie heeft een geïntegreerd display en biedt een goede afleesbaarheid met een nauwkeurigheid van 0,5%.

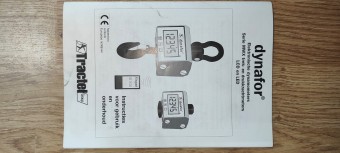

Handleiding / Manual : PDF

Specificaties:

  • Capaciteitsbereik van 1 tot 2,5 ton
  • 5-cijferig LCD-display van 30 mm hoog
  • 0,5% nauwkeurigheid van de volledige schaal
  • Automatische stop ingesteld op 20 min (kan optioneel worden verwijderd)
  • Meerdere geïntegreerde functies (AAN, Tarra, Piek vasthouden, Eenheden wijzigen)
  • Registratie digitaal middels Bluetooth smartphone/tablet.
  • Eenheden (kg, lbs, daN)
  • IP54
  • Model MWX in assortiment

Dit product is uitgerust met Tracinfo, een online service die de toegang tot productdocumentatie vereenvoudigt. Met Tracinfo krijgt de gebruiker met een paar klikken direct toegang tot handleidingen, certificaten en meer.

Tracktel Fabrikant site : ZIE

/////////////////////////////////////////////////////////////////////////////////////////////////////////////////

EN

Tractel Dynafor MWX Crane Scale 2.5 TON MAX

Weighing hook for use with measuring equipment

The Dynascale series weighing hook has an integrated display and offers good readability with an accuracy of 0.5%.

Specifications:

-Capacity range from 1 to 2.5 tons

-5-digit LCD display of 30 mm high

-0.5% accuracy of the full scale

-Automatic stop set to 20 min (optionally removable)

-Multiple integrated functions (ON, Tare, Hold Peak, Change Units)

-Digital registration via Bluetooth smartphone/tablet. Units (kg, lbs, daN) IP54

Model MWX in assortment This product is equipped with Tracinfo, an online service that simplifies access to product documentation. With Tracinfo, the user has direct access to manuals, certificates and more with just a few clicks.

/////////////////////////////////////////////////////////////////////////////////////////////////////////////////

https://www.solar-nu-webshop.nl/data/upload/Shop/images/img20241122114415.jpg

https://www.solar-nu-webshop.nl/data/upload/Shop/images/img20241125085646.jpg

https://www.solar-nu-webshop.nl/data/upload/Shop/images/img20241125085659.jpg

https://www.solar-nu-webshop.nl/data/upload/Shop/images/dynafor-25-wmx-001.jpeg

https://www.solar-nu-webshop.nl/data/upload/Shop/images/dynafor-25-wmx-011-certificaat.jpeg

https://www.solar-nu-webshop.nl/data/upload/Shop/images/bluetooth-001.png

https://www.solar-nu-webshop.nl/data/upload/Shop/images/dynafor-wmx-25tbluetooth-meting.png

Brand:Tractel DYNAFOR
Non-Domestic Product;No

Item description from the seller

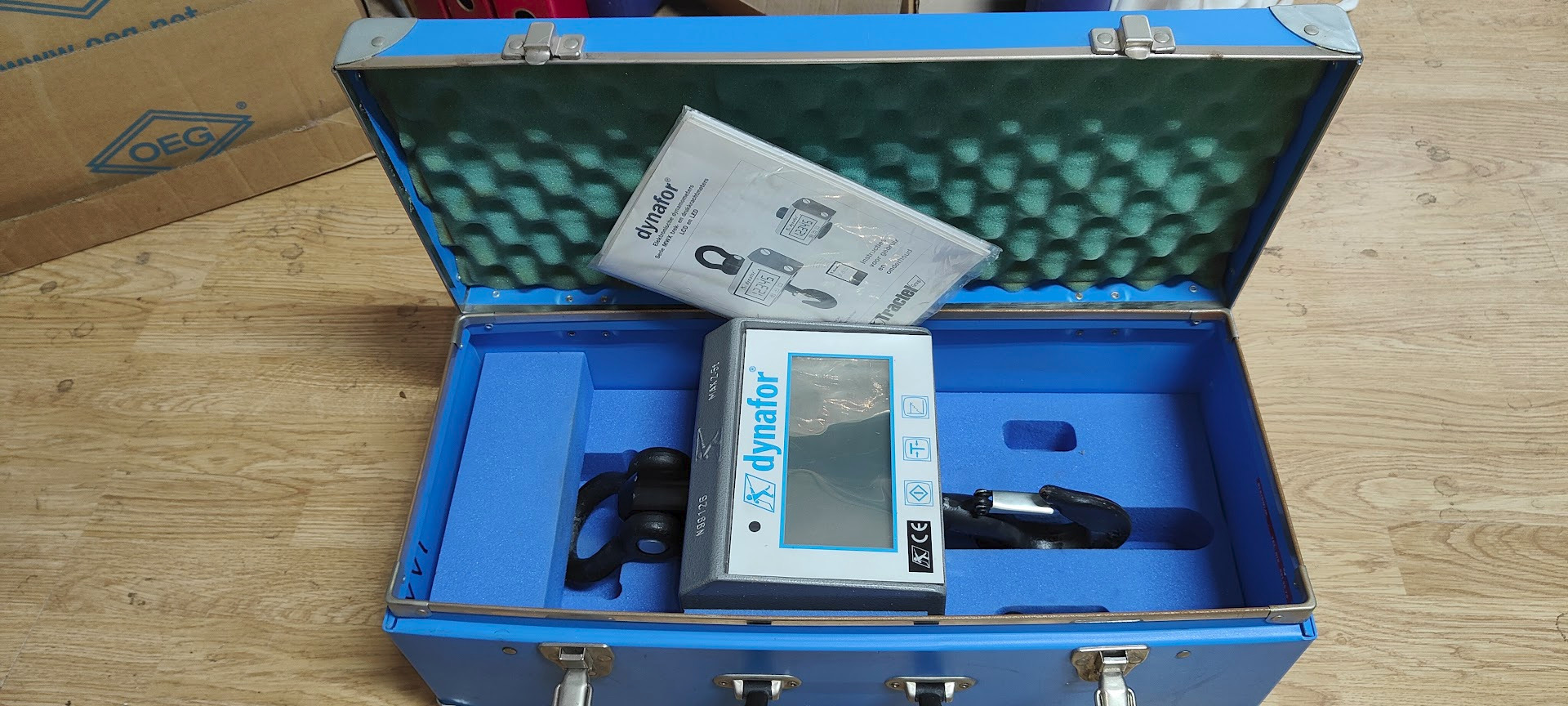

THIS IS A DYNAFOR 2.5 TON MAX TRACTEL SCALE

Important information if it is not shown in the picture then it probably does not come with the item Usually Power cord and connector cords are not included please email me if you have a question before purchasing.

SHIPPING QUOTED IS FOR THE LOWER 48 STATES PLEASE EMAIL ME FOR A QUOTE

All Items will be shipped out within 48 hours of purchase if it is a item that must be palletized I need a commercial address and phone number.

If you have any problems with the item please email us so we can work the problem out

Thank You For Looking At Are Item23

BIN 778

Tractel Dynafor MWX Crane Scale

Tractel Dynafor Crane Scale Model MWX Capacities 0 - 25 tonnes

Load indicator equipped with permanent hanging ring and hook with safety latch especially suitable for the quantification of hanging loads (kg) in industrial environments. Optional wireless remote display and control.

Download a PDF datasheet for the full specification and Options.

Tractel Dynafor MWX Crane Scale

Tractel Dynafor Crane Scale Model MWX Capacities 0 - 25 tonnes

Load indicator equipped with permanent hanging ring and hook with safety latch especially suitable for the quantification of hanging loads (kg) in industrial environments. Optional wireless remote display and control.

Price From £POA

Options

  • Infrared remote control with integrated push-button controls (ON/OFF, Tare, Peak hold)
  • Hand held radio Remote Display, with integrated push-button controls (ON/OFF, tare, Peak hold).
  • Radio controlled dynafor printer
  • Radio controlled dynafor interface for PC connection

Features MWX

  • Accuracy : +/- 0.1% of capacity
  • Power supply : 3 x 1.5 V, AA or R6
  • Battery life : 350 hours variable, depending on the setting of the functions
  • Weatherproof and dust proof : IP65
  • Material : body in aluminium alloy
  • Automatic zero when switched on
  • Low battery signal
  • Overload indication

Tractel Dynafor MWX crane Scale

The Dynafor® MWX gives you the possibility to control and measure loads on cranes. It has great work autonomy of up to 700 hours battery life. The MWX, with its LCD readout, programmable functions, and remote display, is ideal for weighing with cranes. Models 2.5 to 12.5 t are available with infrared control

ractel MWX Technical Information

Model WLL Precision +/- (Kg) Minimum Display (Kg) Increment (Kg) Maximum Display (Kg) Weight (Kg)
MWX 0.5 t 0.5 0.2 0.2 550 4.3
MWX 1.0 t 1 0.5 0.5 1100 4.3
MWX 2.0 t 2 1 1 2200 4.3
MWX 3.2 t 3.2 1 1 3520 4.3
MWX 5.0 t 5 2 2 5500 9
MWX 6.3 t 6.3 2 2 6930 9
MWX 12.5 t 12.5 5 5 13750 20.5
MWX 25 t* 25 10 10 28500 24

Tractel MWX Dimensions

Dynafor MWX crane scale

Model MWX
0,5 t
MWX
1 t
MWX
2 t
MWX
3,2 t
MWX
5 t
MWX
6,3 t
MWX
12,5 t
MWX
25 t
Dimensions
mm
A 470 470 470 470 694 694 913 -
B 136 136 136 136 206 206 206 -
C 160 160 160 160 203 203 203 206
D 50 50 50 50 85 85 98 203
E 87 87 87 87 148 148 203 -
F 423 423 423 423 620 620 800 370
G 17 17 17 17 27 27 54 -
H 44 44 44 44 71 71 80 -
J 30 30 30 30 41 41 63 -
K 126 126 126 126 167 167 167 -
L 128 128 128 128 225 225 316 167
M 18 18 18 18 26 26 50 -
N - - - - - - - 68
O* - - - - - - - 52

* Compatible with the shackle and the hook for dynafor LLX 25 t
