Product zoeken
AXITEC Energy AXIworldblackpremium XL AC-375M/60V (1745x1038x35) €.0,500W
€ 197,50
per stuk
Minimum aantal is 4 voor € 790,00
Delen
Omschrijving
AXITEC Energy

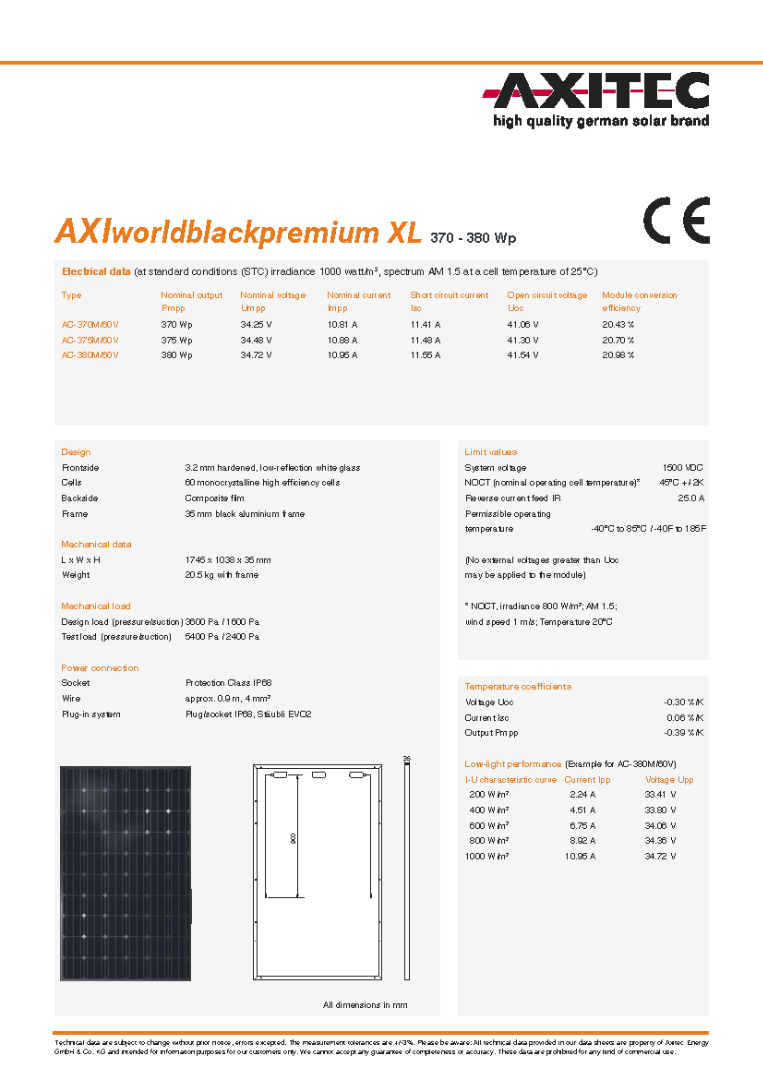

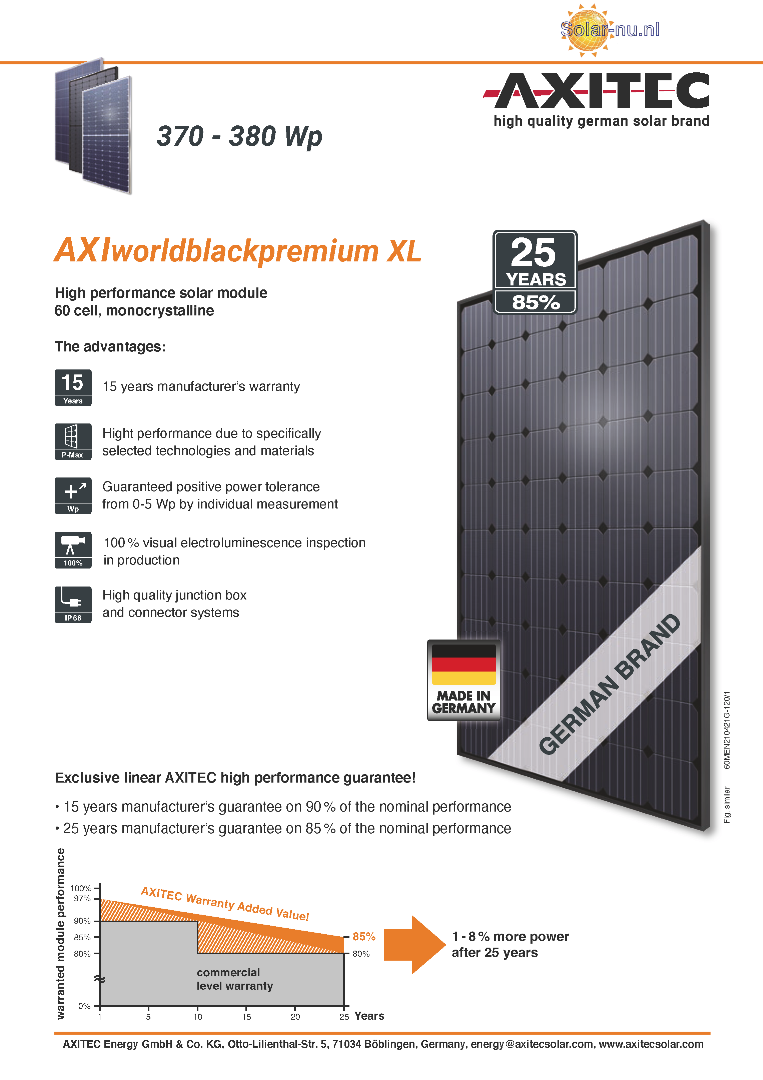

AXIworldblackpremium XL AC-375M/60V (1745x1038x35) PDF

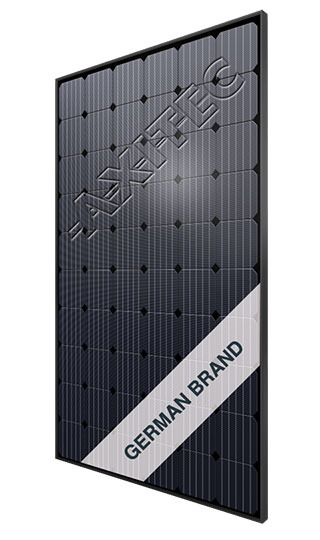

AXITEC high-quality solar module black
Item no. 0134779
including cable (ca. 90 cm) and MC4 EVO2 connector system (IP 68)
stable anodized black alu-frame
high-performance solar cells
version with 9 busbars
!!To avoid stains, please touch the Black-modules only with gloves!!
!!production caused color differences can not be ruled out!!
| Manufacturer: | AXITEC Energy |
| Warranty: |
15-year manufacturer guarantee 25-year linear output warranty with 0,5% annual output reduction |
| Technical Data | |
| Nominal output | 375 |
| Nominal voltage (V) | 34.48 |
| Nominal current (A) | 10.88 |
| Short-circuit current (A) | 11.48 |
| Open-circuit voltage (V) | 41.3 |
| System voltage (V) | 1500 |
| Cell type | monocrystalline |
| Output tolerance | +5 Wp |
| Length (mm) | 1,745 |
| Width (mm) | 1,038 |
| Height (mm) | 35 |
| Weight (kg) | 20.5 |
| Cell count vertical | 10 |
| Cell count horizontal | 6 |
| Cell length (inches) | 166 |
| Cell width (inches) | 166 |
| Frame type | Standard |
| Certificate 1 | IEC/TÜV |
| Certificate 2 | Protection Cl |
