JA Solar JAM72S20-460/MR - 460W.(2,112x1,052x35mm) €0,510W

€ 239,50
Omschrijving









JA Solar

JAM72S20-460/MR

JA Solar high-performance solar module

Supplier item: JAM72S20-460/MR



LEVERING MEDIO HALF JUNI 2022

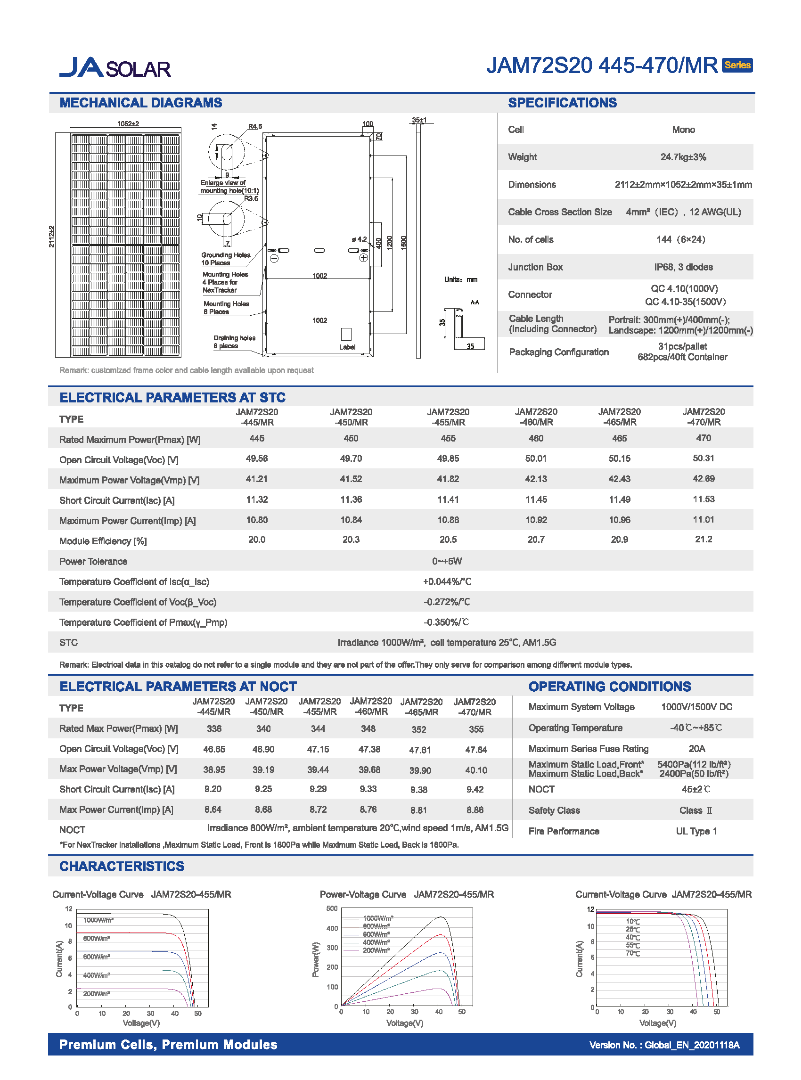

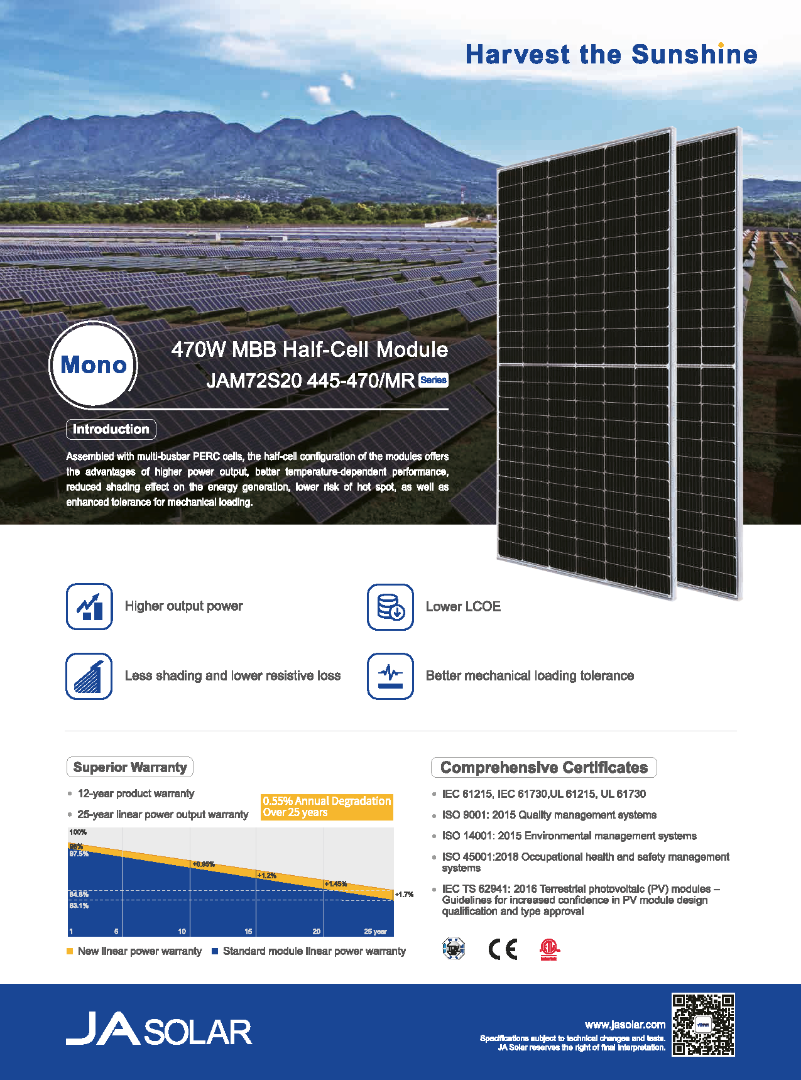

Herstellerartikelnummer: JAM72S20-460/MR   PDF


including cable (ca. 120 cm) and MC4 connectable connector system
Stable anodized alu-frame
High-performance solar cells
Version with 9 busbars

Open Circuit Voltage Uoc (V): 50,01
Temperature Coefficient Pmpp (%/K): -0,35
Temperature Coefficient Isc (%/K): 0,04
Temperature Coefficient Uoc (%/K): -0,27
Number of cells along: 24
Short Circuit Current Isc (A): 11,45
Nominal Current Impp (A): 10,92
Power Rating Pmax (Wp): 460
Nominal Voltage Umpp (V): 42,13
Lenght of Cables (cm): 120
Max system voltage (V): 1500
Cell Type: monocrystalline
Number of cells across: 6
Frametype: standard
Power Tolerance: 5,00
Cell length (mm): 83,00
Connector Type: MC4 connectable
Cell width (mm): 166,00
Backsheet Color: white
Manufacturer: JA Solar
Supplier item: JAM72S20-460/MR
Frame Color: silver
Intrastat Product number: 85414300
Certificate 1: IEC/TÜV
Certificate 2: Protection Class 2
Height (mm): 35,00
Width (mm): 1.052,00
Length (mm): 2.112,00
Weight (kg): 24,70
Pal. Dim. LxBxH (mm):



Product Warranty (yr): 12
Warranter: JA Solar
Performance Warranty (yr): 25

 JAM72S20-460/MR
