JA Solar JAM66S30-500/MR high-performance (2093x1134x30) ) €.0,242W

€ 127,50 per stuk
Minimum aantal is 4 voor € 510,00
Omschrijving





JA Solar

JAM66S30-500/MR

JA Solar high-performance solar modul

Item no..: 0152442

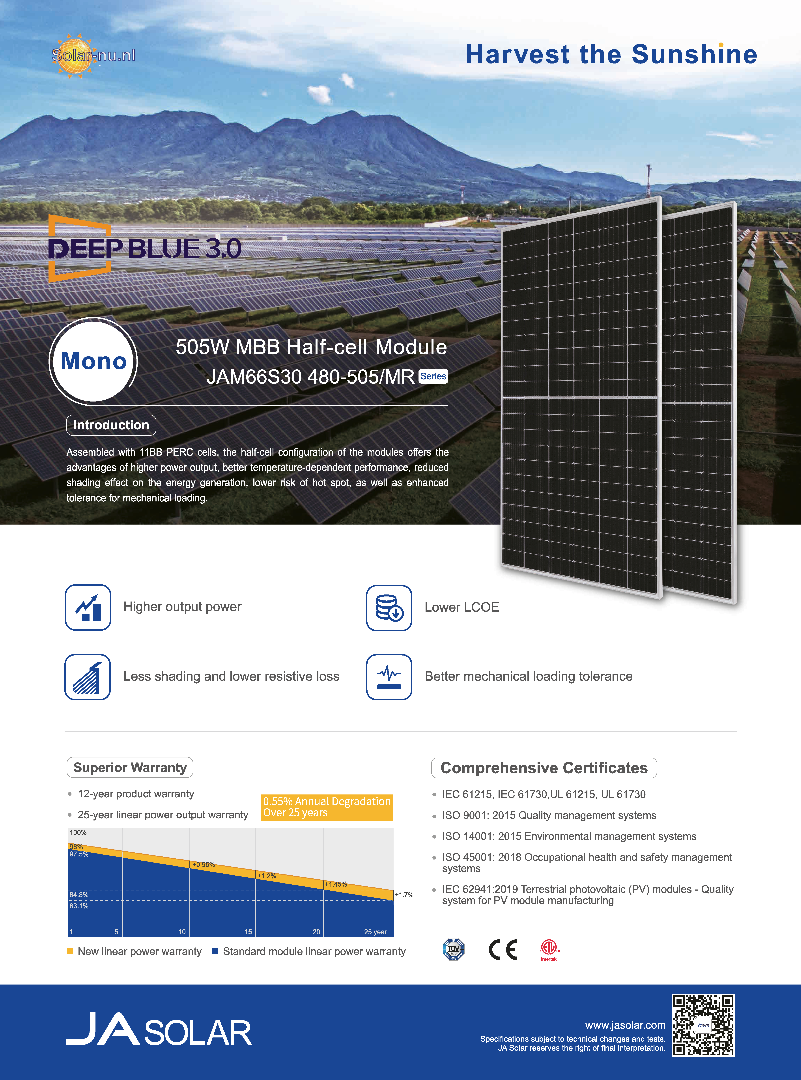

Supplier item: JAM66S30-500/MR  PDF

Including cable (ca. 120 cm) MC4 EVO2 connector system
Stable anodized alu-frame
Thermally pre-stressed solar glass
High-performance solar cells
Version with 11 busbars
Glass thickness 3.2 mm

Number of cells along: 22
Lenght of Cables (cm): 120
Number of cells across: 6
Power Rating Pmax (Wp): 500
Power Tolerance: 5,00
Cell width (mm): 182,00
Nominal Voltage Umpp (V): 38,35
Cell length (mm): 83,00
Nominal Current Impp (A): 13,04
Max system voltage (V): 1500
Cell Type: monocrystalline
Short Circuit Current Isc (A): 13,93
Connector Type: MC4 Evo 2
Open Circuit Voltage Uoc (V): 45,59
Temperature Coefficient Isc (%/K): 0,05
Frametype: standard
Temperature Coefficient Pmpp (%/K): -0,35
Temperature Coefficient Uoc (%/K): -0,28
anufacturer: JA Solar
Manufacturer Item Name:
Supplier item: JAM66S30-500/MR
Certificate 1: IEC/TÜV
Certificate 2: Protection Class 2
Intrastat Product number: 85414300
Frame Color: silver
Backsheet Color: white
Amount per Pallet: 36
Amount Pal. p. Cont.: 22
Amount per Container: 792
Pack. Material:
Pal. Dim. LxBxH (mm):
Pal. Weight (kg):
Height (mm): 30
Length (mm): 2093
Weight (kg): 26,30
Width (mm): 1134
Performance Warranty (yr): 25
Warranter: JA Solar
Product Warranty (yr): 12

JA Solar JAM66S30-500/MR

JA Solar JAM66S30-500/MR

JA Solar JAM66S30-500/MR
