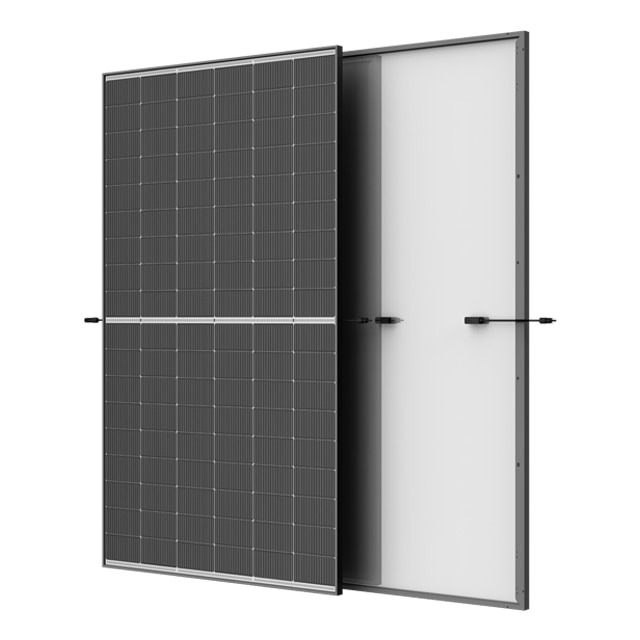

Trina Solar Vertex S+ 510W Half-Cut Black Frame Dual Glass -TSM-510-NEG18R.28 ( 1961 x 1134 x 30 nm) €0,219W

€ 117,50

Aantal

Omschrijving

Trina Solar Vertex S+ 510W Half-Cut Black Frame Dual Glass (TSM-510-NEG18R.28)

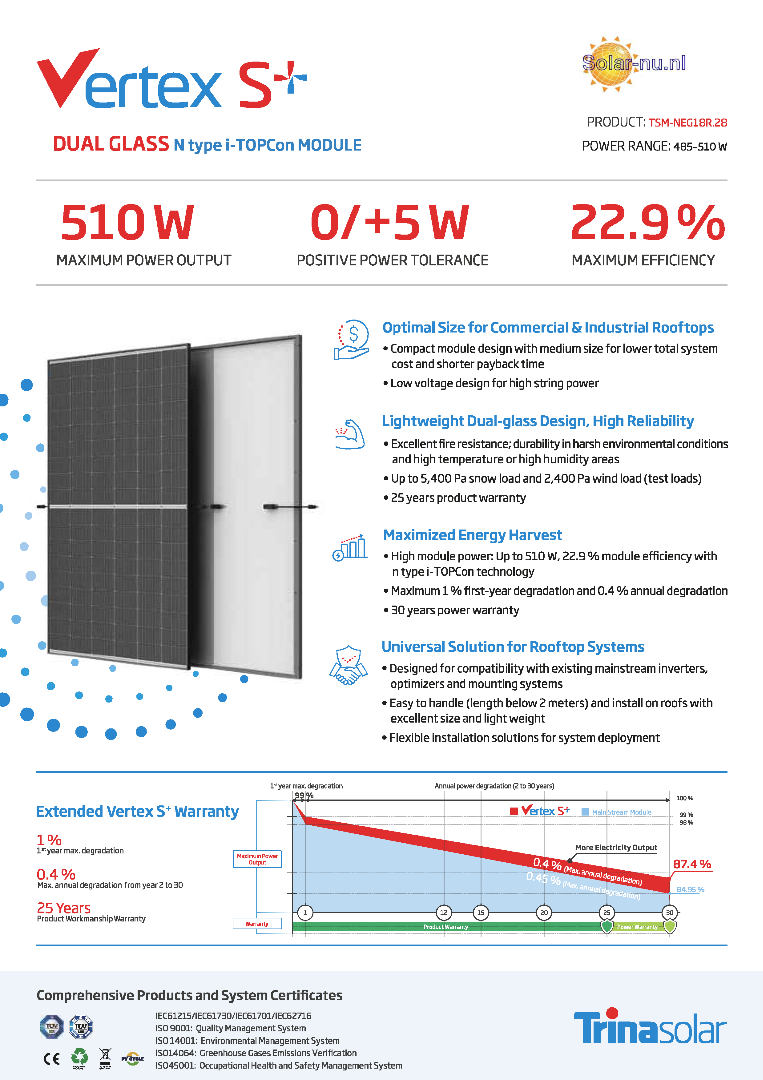

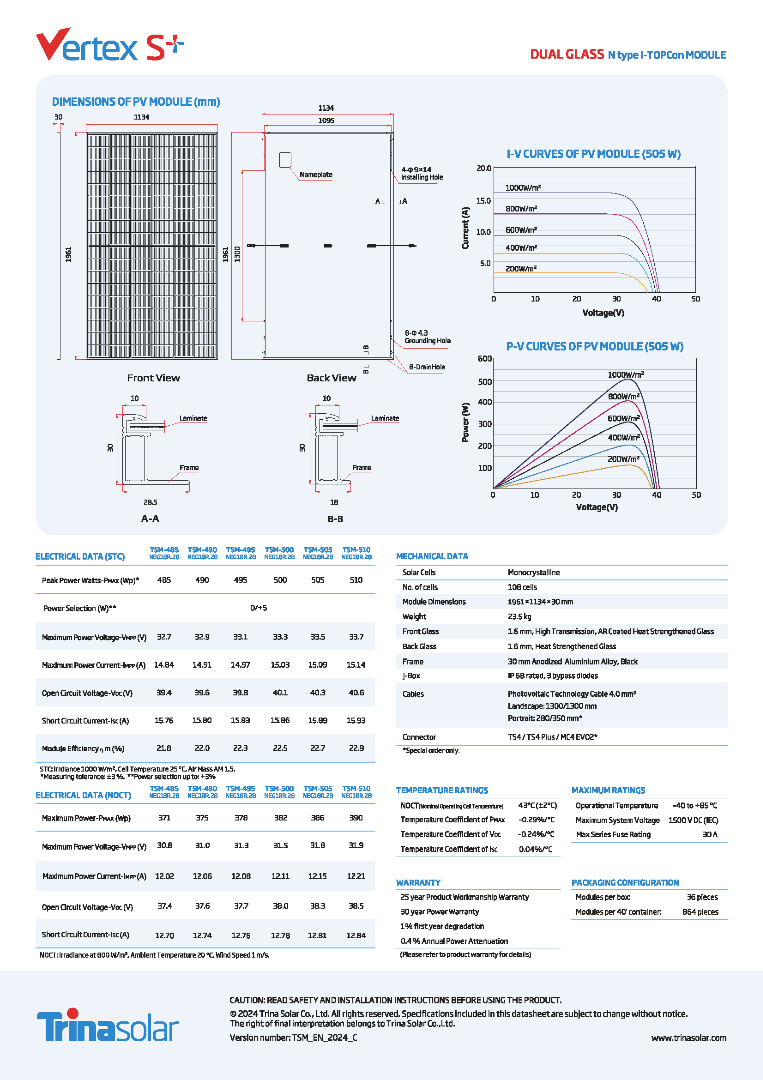

Manufacturers part number TSM-510-NEG18R.28 PDF

Watt 510 Module type Monofacial Framed Number of cells 108 (54)

Watt/m² 229,0 Module surface (m²) 2,224

Cell Half-cut Wafer Size G12R (210x182mm)

Module efficiency 22,9% Temp. Coef PMAX -0,29%/K

Cell Technology TOPCon N-Type Glass Type Dual Glass

Panel frame color Black Panel backsheet type White Tedlar

Dimensions 1961 x 1134 x 30 nm Weight 23,5kg

Cable length + 1 300mm - MC4-EVO2 connectors

Cable length - 1 300mm - MC4-EVO2 connectors

Junction box Standard - Top

Product warranty 25 years

Performance warranty 87,4% after 30 years

Module packaging 36 per pallet - 864 per container
