JA Solar 630 W Deep blue 4.0 Silver Frame N-Type Bifacial Dual Glass (JAM72D42-630/LB) 2465 x 1134 x 30 mm €0,207W

€ 137,50

Aantal

Omschrijving

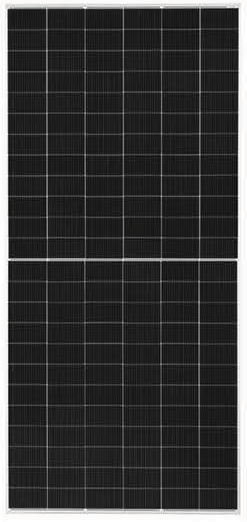

JA Solar 630 W Deep blue 4.0 Silver Frame N-Type Bifacial Dual Glass (JAM72D42-630/LB)

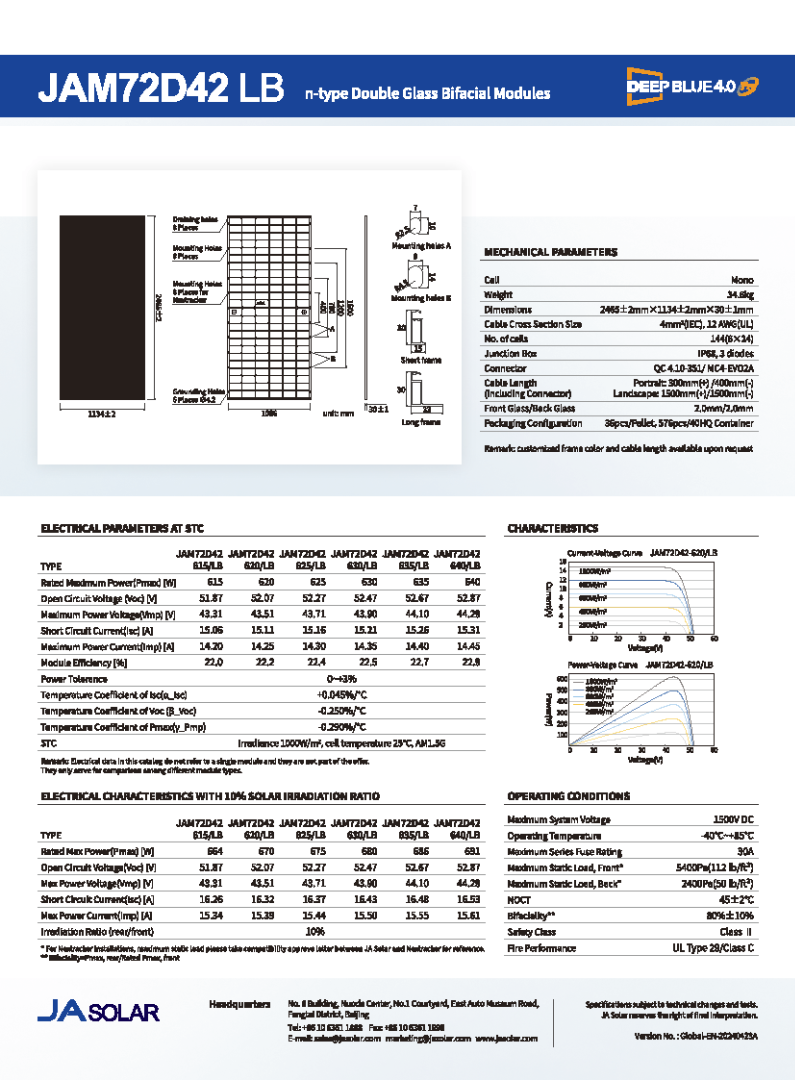

Manufacturers part number JAM72D42-630/LB PDF

Watt 630 Module type Bifacial Framed Number of cells 144 (72)

Watt/m² 225,0 Module surface (m²) 2,795

Cell Half-cut Wafer Size M10 (182mm)

Module efficiency 22,5% Temp. Coef PMAX -0,29%/K

Cell Technology TOPCon N-Type Glass Type Dual Glass

Panel frame color Silver Panel backsheet type White Tedlar

Dimensions 2465 x 1134 x 30 mm Weight 34,6kg

Cable length + 1 500mm - MC4-EVO2 connectors

Cable length - 1 500mm - MC4-EVO2 connectors

Junction box Split box - Mid

Product warranty 12 years

Performance warranty 87,4% after 30 years

Module packaging 36 per pallet - 576 per container
