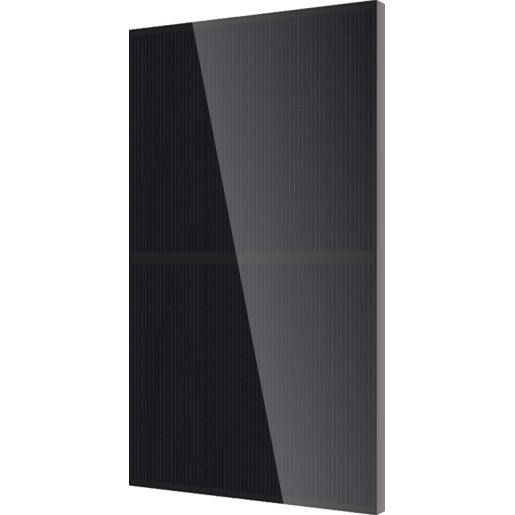

Dmegc Zonnepaneel 365Wp MFB HC ZWART Glas/Glas MC4-EVO2 (1755x1038x35) 4 €.0,577W
€ 219,50
Omschrijving
Dmegc Zonnepaneel 365Wp MFB HC 35mm Glas/Glas met MC4-EVO2 connector

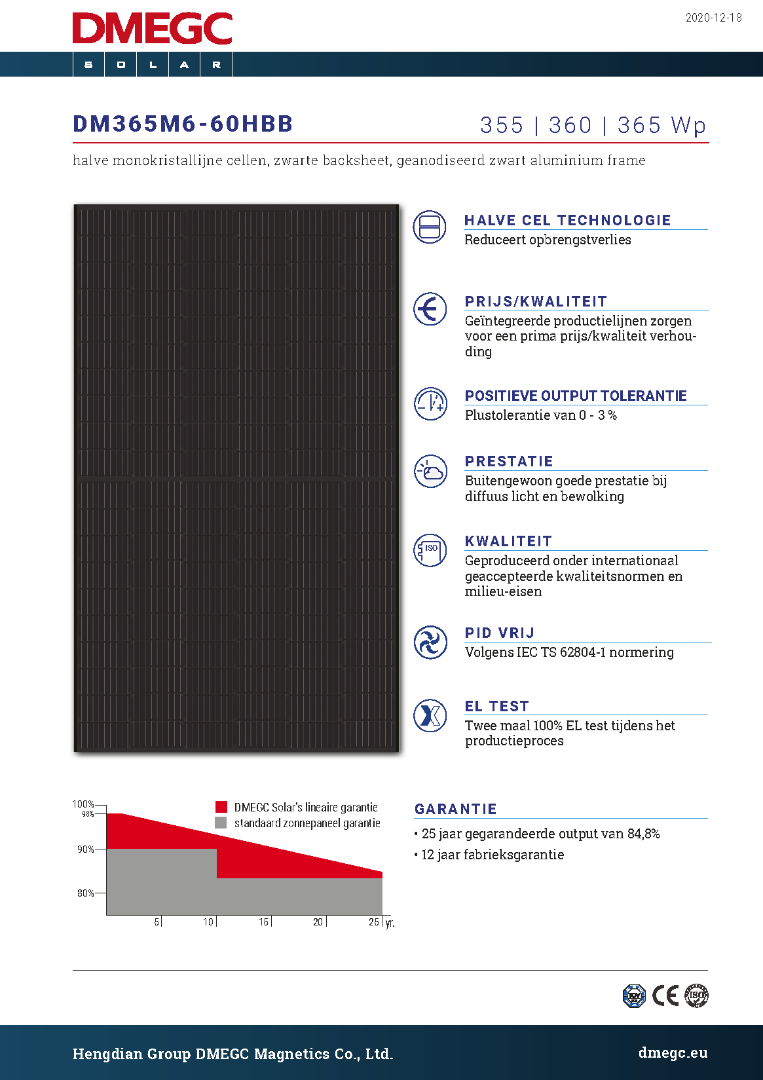

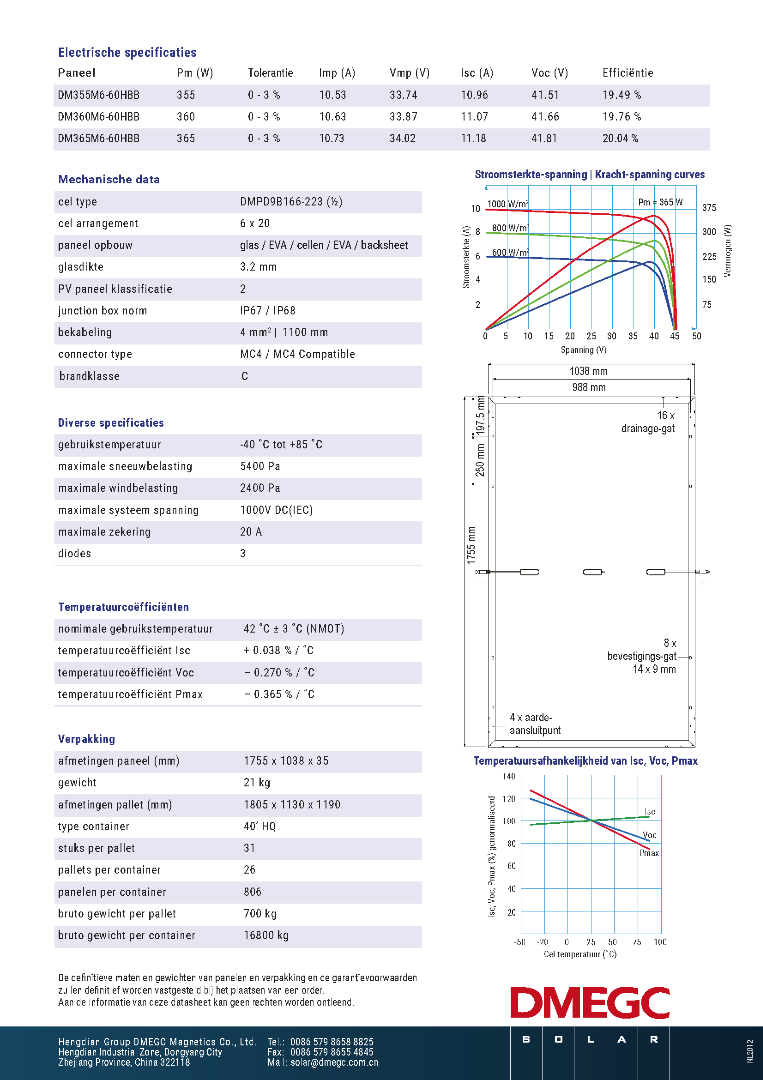

- Product type: DM365M6-B60HBB NP PDF
- Periode: eind juni 2022
Technische specificaties
Fotovoltage - paneel/module |
|
Aantal bypassdiodes | 3 |
---|---|
Aantal cellen | 60 |
Bedrijfstemperatuur | -40 - 85 °C |
Breedte | 1038 mm |
Celmateriaal | Monokristallijn |
Geschikt voor verticale/dakbeglazing | Ja |
Gewicht | 24 kg |
Glas met antireflectie coating | Ja |
Hoogte | 35 mm |
Kabellengte | 1100 mm |
Kleur frame | Zwart |
Kortsluitstroom | 11.22 A |
Lengte | 1755 mm |
Max. systeemspanning | 1500 V |
---|---|
Max. terugstroombelastbaarheid | 25 A |
Met aansluitkabel | Ja |
Met frame | Ja |
Module-rendement | 20.04 % |
MPP vermogen bij STC | 365 Wp |
MPP-spanning | 33.82 V |
MPP-stroom | 10.8 A |
Nullastspanning | 41.57 V |
Temperatuurcoëfficiënt Isc | 0.037 %/K |
Temperatuurcoëfficiënt Pmpp | -0.365 %/K |
Temperatuurcoëfficiënt Uoc | 0.27 %/K |
Vermogenstolerantie | 0 - 0 % |
