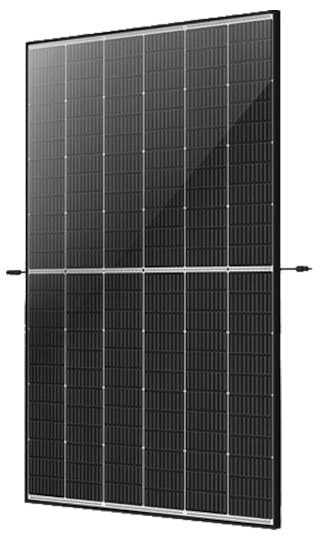

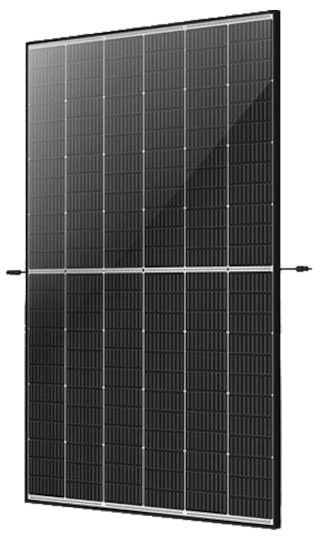

Trina Solar 425W - TSM-425DE09R.08 Vertex S High Power Solar Module (1762x1134x30) €0,582W
€ 252,50
per stuk
Minimum aantal is 4 voor € 1.010,00
Delen
Omschrijving
Trina Solar
TSM-425DE09R.08 Vertex S
TRINA SOLAR High Power Solar Module

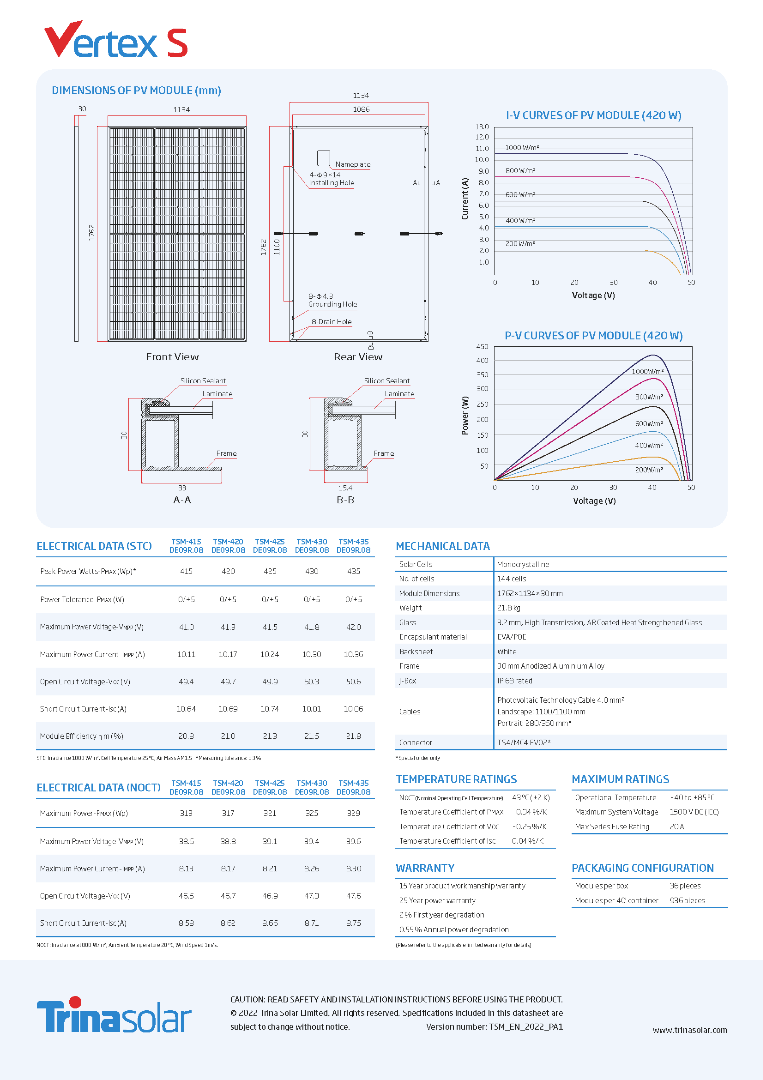

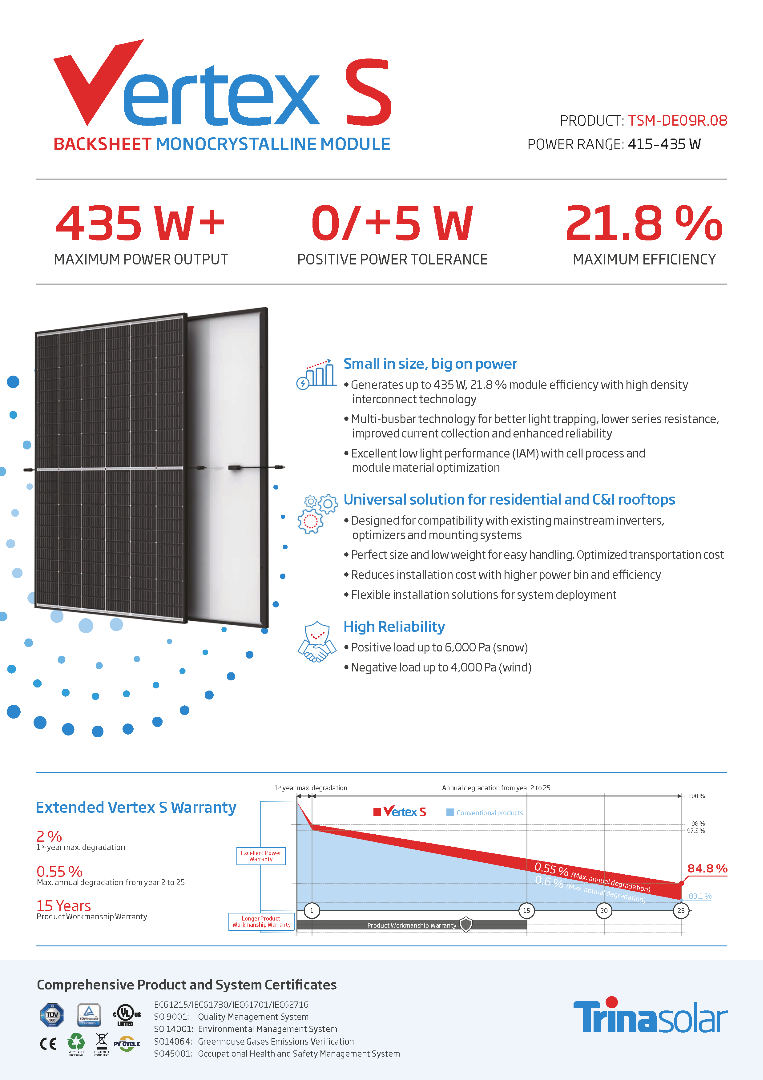

Supplier item: TSM-425DE09R.08 PDF
including cable (ca. 110 cm) and MC4 EVO2 connector system
stable anodized black alu-frame
high-performance solar cells
version with 10 busbars
| Cell width (mm): | 210,00 |
| Power Rating Pmax (Wp): | 425 |
| Temperature Coefficient Uoc (%/K): | -0,25 |
| Lenght of Cables (cm): | 110 |
| Cell length (mm): | 182,00 |
| Temperature Coefficient Pmpp (%/K): | -0,34 |
| Nominal Current Impp (A): | 10,11 |
| Nominal Voltage Umpp (V): | 41,00 |
| Open Circuit Voltage Uoc (V): | 49,40 |
| Short Circuit Current Isc (A): | 10,64 |
| Number of cells along: | 24 |
| Cell Type: | monocrystalline |
| Number of cells across: | 6 |
| Frametype: | standard |
| Power Tolerance: | 5,00 |
| Temperature Coefficient Isc (%/K): | 0,04 |
| Connector Type: | MC4 Evo 2 |
| Max system voltage (V): | 1500 |
| Backsheet Color: | white |
| Manufacturer: | Trina Solar |
| Frame Color: | black |
| Intrastat Product number: | 85414300 |
| Manufacturer Item Name: | |
| Certificate 1: | IEC/TÜV |
| Certificate 2: | Protection Class 2 |
| Supplier item: | TSM-415DE09R.08 |
| Height (mm): | 30 |
| Width (mm): | 1134 |
| Length (mm): | 1762 |
| Weight (kg): | 21,80 |
| Pal. Dim. LxBxH (mm): |
| Product Warranty (yr): | 15 |
| Warranter: | Trina Solar |
| Performance Warranty (yr): | 25 |
